CALIBEX- 3D LASER TANK CALIBRATION TECHNOLOGY

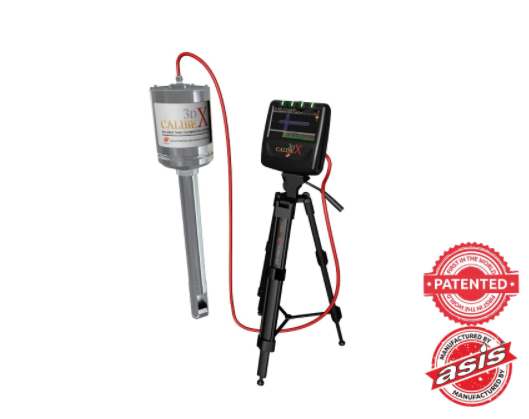

CalibeX® (3D Laser Calibration Technology)
TECHNICAL SPECIFICATIONS
- Calibration in 30 minutes
- Easy to install, easy of use and carry (75x15x15 cm)
- Measures the inner diameter, dimensions, height and slope of the tanks
- The tank does not have to be completely empty for calibration
- Suitable for most horizontal-cylindrical tanks
- 10m Measuring distance
- 230 Vac power supply
- 2” input size
- Mobile CalibeX set (100x40x40 cm)
- 6 kg product weight
- IP 54 Protection
- ATEX approved Laser Technology
- Meets all Environment, Safety and Health (HSE) criteria
- ± 0.5% accuracy in volume calculation (VSL Netherlands Metrology Institute and NMi evaluation results)
- ± 0.1 ° accuracy in inclination measurements (VSL Netherlands Metrology Institute and NMi evaluation results)
- ± 0.1% overall measurement accuracy
Features
- Measures the internal dimensions of the tanks automatically.
- Calculates the inclination of the tank
- Computes the diameter of the tank.
- Calculates the internal dimensions of the tank (Depth and length, etc.).
- Calculates the diameters of the tank heads.
- Creates mathematical model of the tank.
- Usable in all horizontal, cylindrical underground and aboveground tanks.
- One tank can be calibrated within 25-40 minutes and calibration of all tanks at a gas station can be completed only within a few hours.

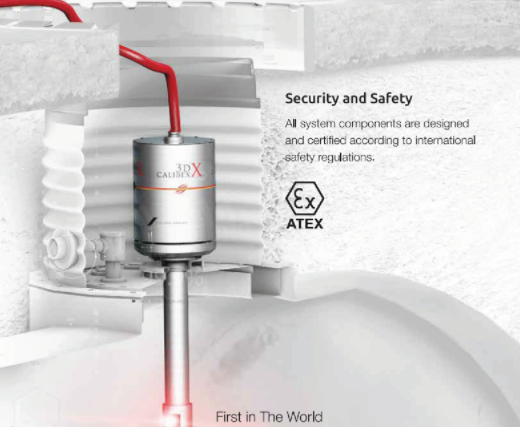

- It is reliable and all risk factors are taken under control (ATEX).
- Application and operation of the system fully meets the Occupational Health and Safety and Environmental criteria (OHSE).
- Calibration process does not cause downtime.
- It does not require the tanks to be full. The emptier tank, the higher accuracy of the system.
- It generates highly accurate and reliable calibration tables compared to any other systems.
- Ensures prompt and definite results from the tank automation system.
CalibeX® (3D Laser Calibration Technology)

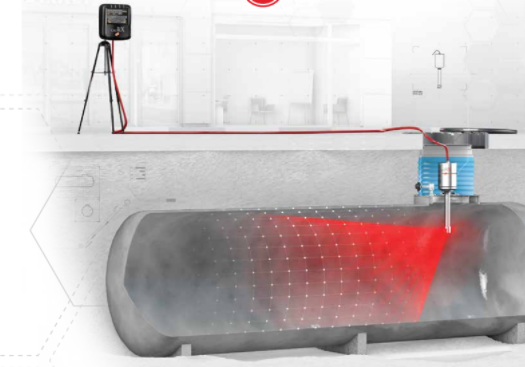

The system safely capable of calibrating fuel tanks with high accuracy, safely, in a short period of time, using 3D methods and laser technology.
3DCalibeX® is one of the most comprehensive technological projects developed by Asis to date. It is a system composed of advanced robot mechanics, mechatronics, state-of-the-art electronic circuit designs, on-board LEL device design, laser and optical applications, etc. and applications consisting of 3D modeling algorithms and data analysis software involving advanced mathematics.
